Dump Valve Test Bench
Dump Valve Test Bench

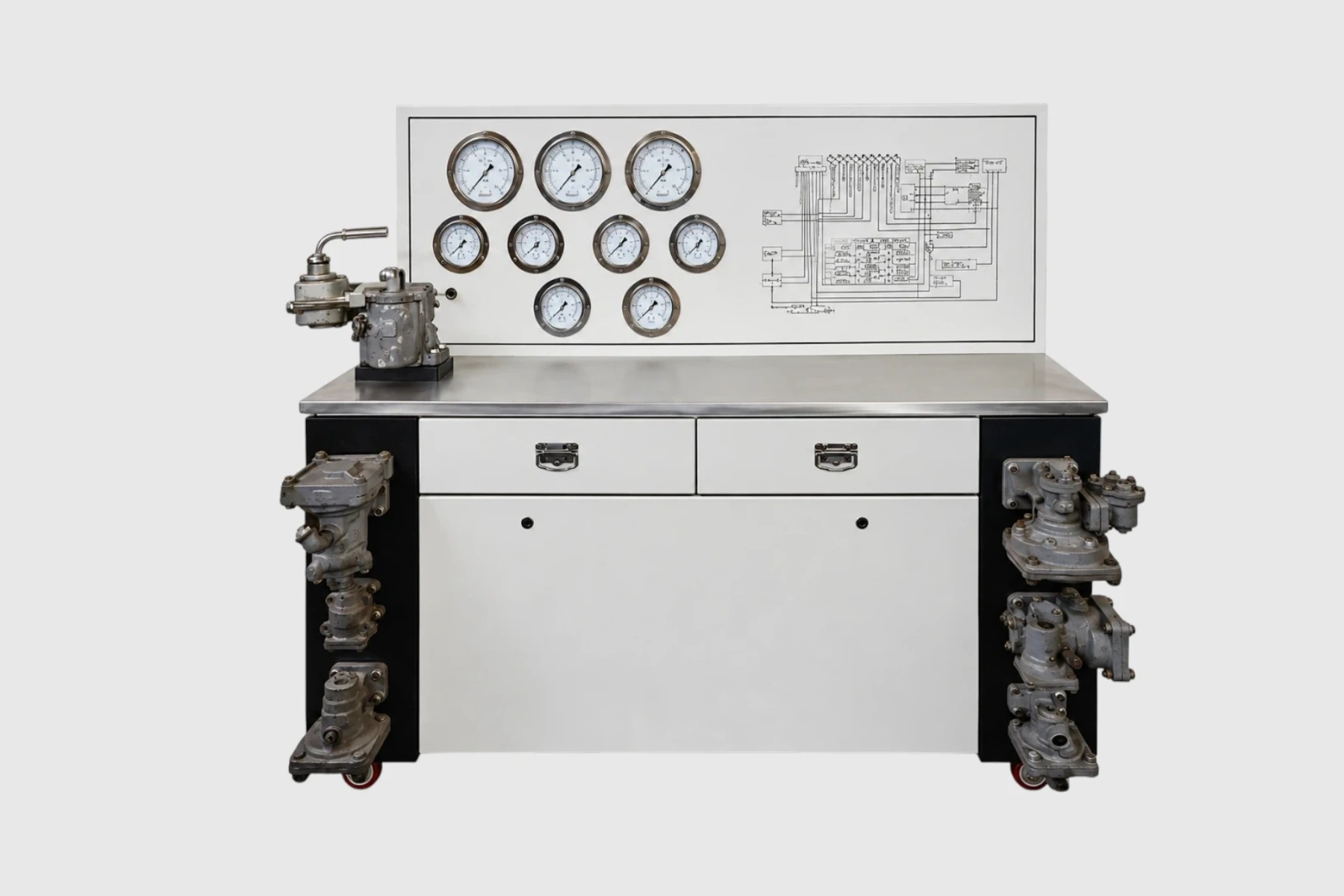

Automatic Dump Valve Test Bench is a precision-engineered testing system designed for comprehensive performance evaluation of Dump Valves used in railway braking systems. Built with advanced servo-based technology, this fully automatic test bench ensures accurate, repeatable, and efficient testing of dump valves in accordance with industry standards.
Key Features:
Multi-Gauge Pressure Panel with Circuit Diagram
Sturdy Table-Top Console Design
Dual-Side Valve Mounting Fixtures
Mobile & Space-Saving Structure
Technical Specifications
| No. | Technical Specification | Details |
|---|---|---|
| 1 | Machine Type | Hydraulic Hose Test Rig Machine |
| 2 | Working Type | Hydraulic |
| 3 | Application | Hydraulic Hose Pressure Testing |
| 4 | Testing Pressure | Up to 640 Bar / 9280 PSI* |
| 5 | Hose Connection | High-Pressure Hydraulic Connections |
| 6 | Pressure Control | Controlled Pressure Testing System |
| 7 | Control System | Electrical Control Panel with Computer Interface |
| 8 | Pressure Monitoring | Digital Pressure Monitoring |
| 9 | Test Medium | Hydraulic Fluid / As per Test Requirement |
| 10 | Hose Testing | High-Pressure Hydraulic Hose Testing |
| 11 | Leakage Testing | Yes |
| 12 | Pressure Resistance Testing | Yes |
| 13 | Test Data Recording | Computer-Based Data Recording |
| 14 | Machine Construction | Heavy-Duty Enclosed Structure |
| 15 | Mobility | Wheel-Mounted Construction |
