With the increasing complexity of railway rake braking systems, ensuring the reliability, accuracy, and performance of rake brake components is essential for safe rail operations. Harsh operating conditions often lead to wear and tear in brake systems, making regular testing a critical part of maintenance to prevent compromised braking action and ensure operational safety.

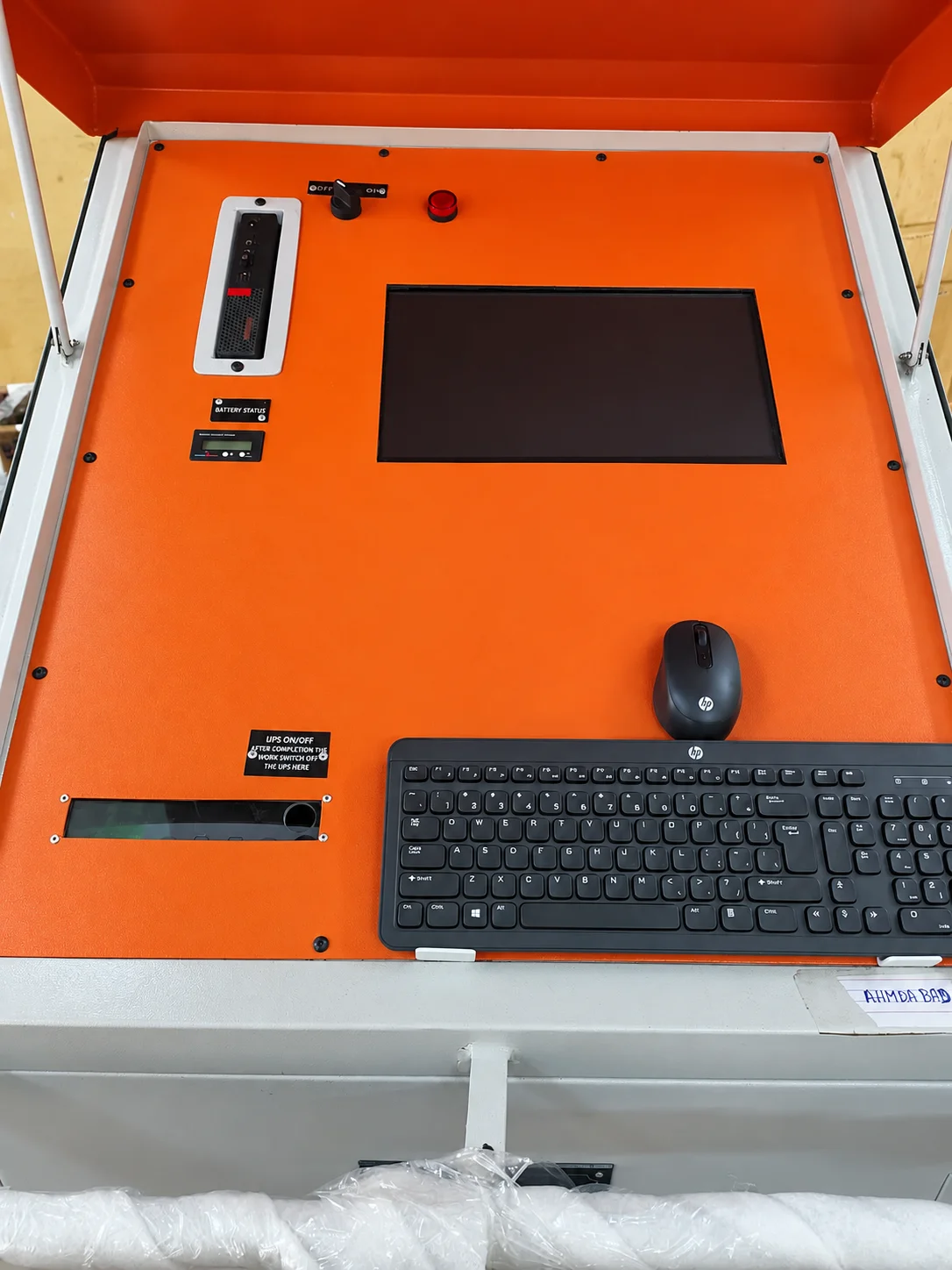

The RTR Test Rig (Rake Test Rig) is a pneumatic testing system designed to evaluate the performance of railway rake braking systems under controlled pressure conditions. Equipped with a computerized embedded system, touch panel control, and pressure sensors, it accurately monitors key parameters such as MR, CR, AR, BC, BP, and FP pressure, comparing them against pre-set values to detect faults and verify performance standards. With a max pressure capacity of 10 Kg/cm² and a mobile design, it offers a reliable solution for rake brake testing.
